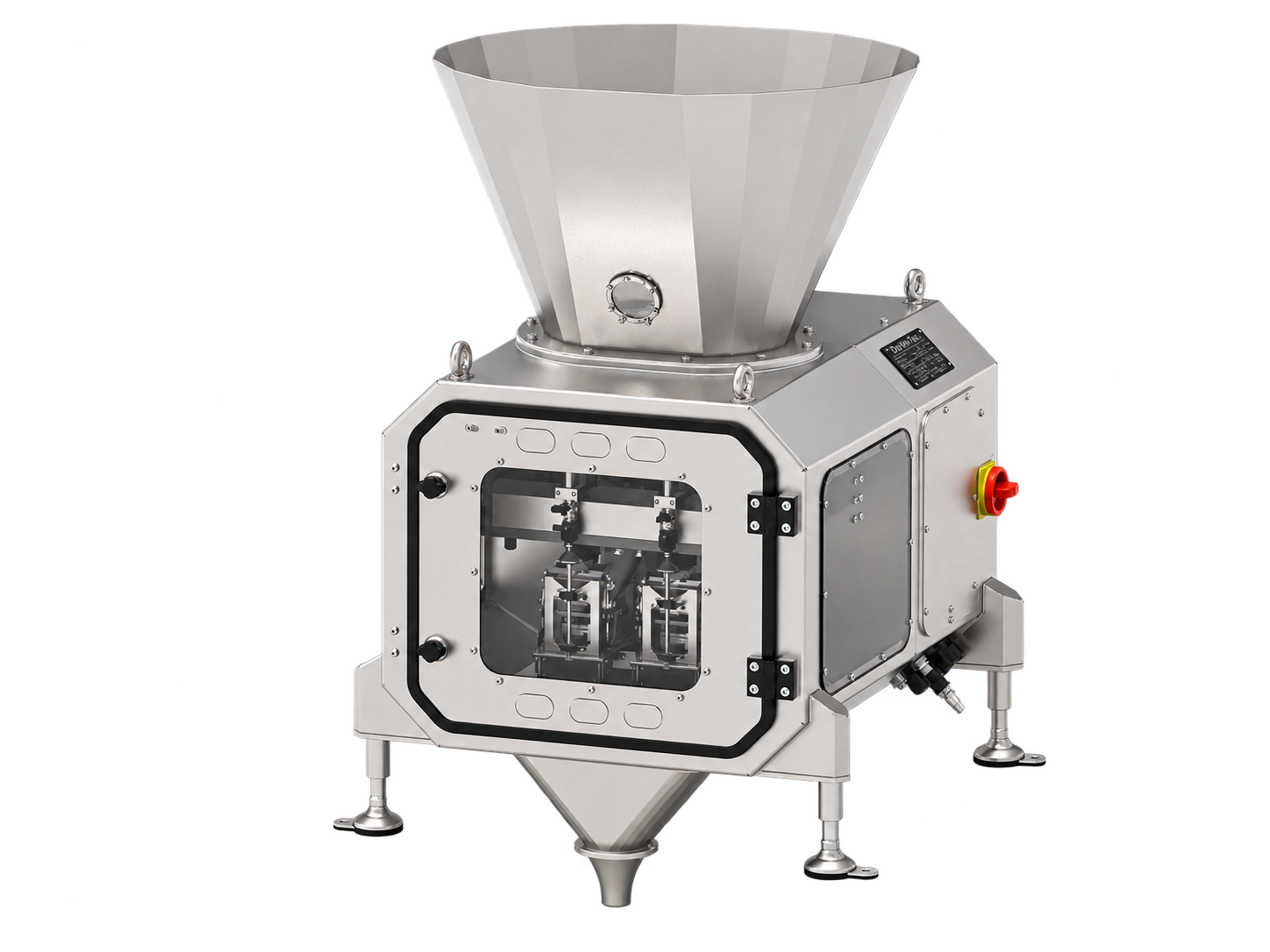

One compact size with configurations from one to six weighing lanes. The specific design depends on the product, dosing quantity and installation space. The machine shown is an example configuration; customer-specific adaptations are possible.
- Number of weighing lanes
- 1–6 Lanes
Confirmed technical specification
Conditions: The number and configuration are agreed for each project.
- Typical target weight range
- approx. 5–500 g
Tested range
Application-dependent value based on experience; not a general or contractual performance commitment. Conditions: Depends on the product, target weight, feeding, machine configuration and process conditions. The specific design is project-dependent; not a general performance commitment.
- Cycle rate per weighing lane
- up to approx. 25 weighings/min
Potential peak value under the stated conditions
Conditions: Depending on the product and application, cycle rates of up to approx. 25 cycles/min per lane are possible. This is not a fixed guaranteed performance; it depends on the product, target weight and machine configuration.
- Accuracy / weighing deviation
- approx. 0,5–1 % of target weight
Typical value
Application-dependent value based on experience; not a general or contractual performance commitment. Reference: Respective target weight Conditions: The accuracy actually achievable depends on the target weight, product characteristics and the specific system configuration.
The achievable cycle rate and weighing deviation depend on the product, target weight, machine configuration and process conditions. The specific design is based on your requirements.
